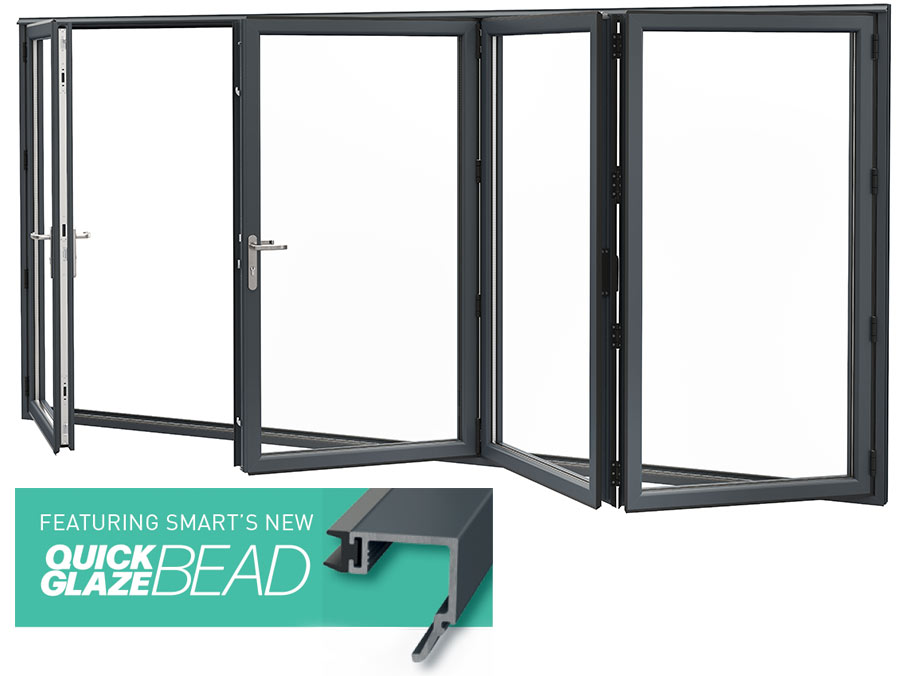

Visofold 1000 Slim Bifold Doors
Available in a range of opening configurations to suit any application
Available in a range of opening configurations to suit any application, Visofold doors can be folded internally or externally and with the opening at the side (so the sashes all fold one way), at one end (to create a single entrance door) or in the middle (to give the option of a double door).
Visofold’s flexibility makes it the ideal choice for projects where large, uninterrupted openings are required, with the system providing maximum light and space to give unimpeded views.
The highly-versatile, easy-to-operate system is the perfect option for even the largest project, capable of opening up an entire wall, yet presenting a contemporary, elegant glazed façade when closed.
Visofold 1000 Slim doors are available in a choice of standard or non-standard colours, including metallic, dual colour and unique Sensations range of textured finishes.
*Standard sash unless specified.
Visofold 1000 Slim | |
---|---|
Application | Domestic / Commercial |
Finish | Single / Dual colour, marine quality polyester powder coated |

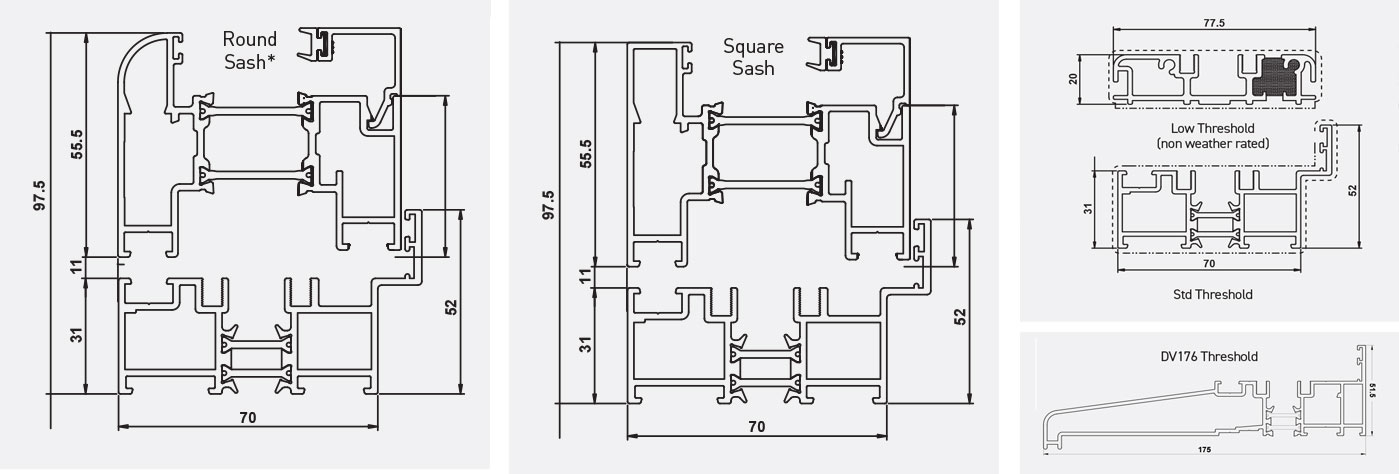

Profile | Round / Square |
Lock Mechanism | Ultion (diamond accredited) Cylinder as standard - multi-point locking |
Frame depth | 70mm |
Typical sight line | 122mm |
Max sash weight | 100kg |
U Value | 1.3-1.5 w/m²k |
Min - Max o/a height (per sash) | 1850 - 2500mm |
Min - Max o/a width (per sash) | 700 - 1200mm |
Security tested | PAS 24: 2012 DOC Q Optional Upgrade |
Weather tested | BS 6375 Part 1: 2009 |
Glazing | DG 28mm / TG 36mm |
Add ons | 20mm, 42mm |
Bead | Internal Only |
Cills | 85mm, 150mm, 190mm, 225mm, 300mm |
Open In | Open inward doors have 25mm clearance only |
CONFIGURATIONS
All designs available left or right handed. Corner bi-folds available on request
